Seitenrolle mit Kunststoffrad
Bestell Nr. Rad Ø Radbreite Anschraubfläche Tragkraft Ansicht
SR01-KS-30-W ZN 30,0 mm 14,7 mm - 40,0 kg N
SR02-KS-50-G ZN 50,0 mm 13,0 mm - 40,0 kg N
SR03-KS-30-S ZN 30,0 mm 14,7 mm - 40,0 kg N
SR03-KS-44-S ZN 44,0 mm 20,0 mm - 40,0 kg N
SR04-KS-30-S ZN 30,0 mm 14,7 mm - 50,0 kg N
SR04-KS-44-S ZN 44,0 mm 20,0 mm - 50,0 kg N
SR05-KS-30-W ZN 30,0 mm 14,7 mm - 50,0 kg N
SR05-KS-44-S ZN 4,0 mm 20,0 mm - 50,0 kg N
SR06-KS-30-S ZN 30,0 mm 14,7 mm - 60,0 kg N
SR06-KS-44-S ZN 44,0 mm 20,0 mm - 60,0 kg N
SR07-KS-30-S ZN 30,0 mm 14,7 mm - 60,0kg N
SR07-KS-44-S ZN 44,0 mm 20,0 mm - 60,0 kg N
SR08-KS-30-S ZN 30,0 mm 15,0 mm - 40,0 kg N
SR08-KS-44-S ZN 44,0 mm 20,0 mm 28,0 mm x 78,5 mm 45,0 kg N
SR09-KS-30-S ZN 30,0 mm 15,0 mm 28,0 mm x 100,5 mm 40,0 kg N
SR09-KS-44-S ZN 44,0 mm 20,0 mm 28,0 mm x 100,5 mm 45,0 kg N
SR09-KS-50-S ZN 50,0 mm 13,0 mm 28,0 mm x 100,5 mm 50,0 kg N
SR10-KS-30-S ZN 30,0 mm 15,0 mm 28,0 mm x 135,5 mm 40,0 kg N
SR10-KS-44-S ZN 44,0 mm 20,0 mm 28,0 mm x 135,5 mm 45,0 kg N
SR10-KS-50-S ZN 50,0 mm 13,0 mm 28,0 mm x 135,5 mm 50,0 kg N
SR11-KS-30-S ZN 30,0 mm 15,0 mm - 40,0 kg N
SR12-KS-30-S ZN 30,0 mm 15,0 mm - 40,0 kg N
SR13-KS-30-S ZN 30,0 mm 15,0 mm - 40,0 kg N
SR13-KS-44-S ZN 44,0 mm 20,0 mm - 45,0 kg N
SR13-KS-50-S ZN 50,0 mm 13,0 mm - 45,0 kg N

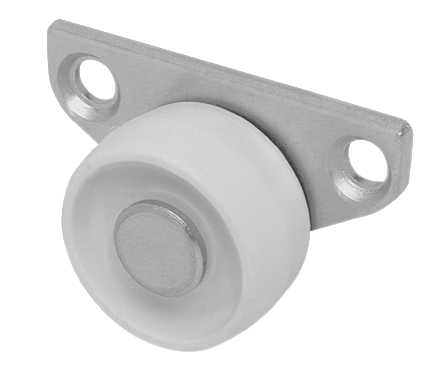

SR01-KS-30-W ZN

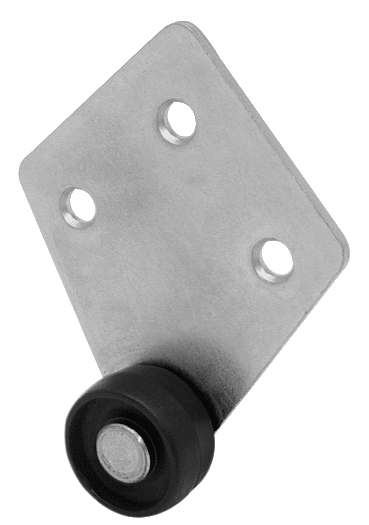

SR04-KS-30-S ZN

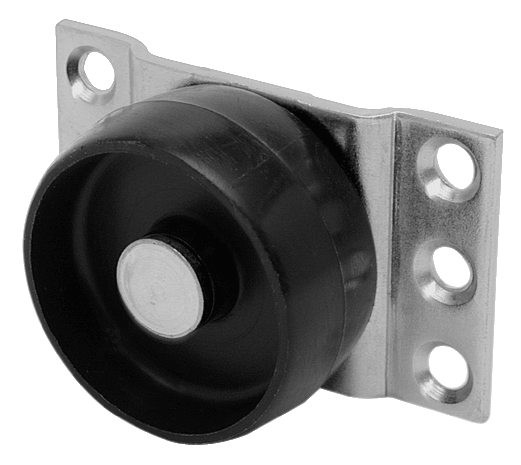

SR05-KS-44-S ZN
Eigenschaften
Kunststoff - Rad
Irrtümer und Änderungen vorbehalten.
Seitenrolle mit 2-Komponentenrad
Bestell Nr. Rad Ø Radbreite Anschraubfläche Tragkraft Ansicht
SR01-2K-30-G ZN 30,0 mm 14,0 mm - 40,0 kg N
SR01-2K-38-G ZN 38,0 mm 18,0 mm - 40,0 kg N
SR02-2K-38-G ZN 38,0 mm 18,0 mm - 40,0 kg N
SR02-2K-50-G 50,0 mm 18,0 mm - 40,0 kg N
SR03-2K-30-G ZN 30,0 mm 14,0 mm - 40,0 kg N
SR03-2K-50-G 50,0 mm 18,0 mm - 40,0 kg N
SR04-2K-30-G ZN 30,0 mm 14,0 mm - 50,0 kg N
SR04-2K-38-G ZN 38,0 mm 18,0 mm - 50,0 kg N
SR04-2K-50-G 50,0 mm 18,0 mm - 50,0 kg N
SR05-2K-30-G ZN 30,0 mm 14,0 mm - 50,0 kg N
SR05-2K-38-G ZN 38,0 mm 18,0 mm - 50,0 kg N
SR05-2K-50-G 50,0 mm 18,0 mm - 50,0 kg N
SR06-2K-30-G ZN 30,0 mm 14,0 mm - 60,0 kg N
SR06-2K-38-G ZN 39,0 mm 18,0 mm - 60,0 kg N
SR06-2K-50-G 50,0 mm 18,0 mm - 60,0 kg N
SR07-2K-30-G ZN 30,0 mm 14,0 mm - 60,0 kg N
SR07-2K-38-G ZN 38,0 mm 18,0 mm - 60,0 kg N
SR07-2K-50-G 50,0 mm 18,0 mm - 60,0 kg N
SR08-2K-30-G ZN 30,0 mm 14,0 mm 28,0 mm x 78,5 mm 40,0 kg N
SR08-2K-38-G ZN 38,0 mm 18,0 mm 28,0 mm x 78,5 mm 45,0 kg N
SR09-2K-30-G ZN 30,0 mm 14,0 mm 28,0 mm x 100,5 mm 40,0 kg N
SR09-2K-38-G ZN 38,0 mm 18,,0 mm 28,0 mm x 100,5 mm 45,0 kg N
SR09-2K-50-G 50,0 mm 18,0 mm 28,0 mm x 100,5 mm 50,0 kg N
SR10-2K-30-G ZN 30,0 mm 14,0 mm 28,0 mm x 135,5 mm 40,0 kg N
SR10-2K-38-G ZN 38,0 mm 18,0 mm 28,0 mm x 135,5 mm 45,0 kg N
SR10-2K-50-G ZN 50,0 mm 18,0 mm 28,0 mm x 135,5 mm 50,0 kg N
SR11-2K-30-G ZN 30,0 mm 14,0 mm - 40,0 kg N
SR12-2K-30-G ZN 30,0 mm 14,0 mm - 40,0 kg N
SR12-2K-38-G ZN 38,0 mm 18,0 mm - 45,0 kg N
SR13-2K-30-G ZN 30,0 mm 14,,0 mm - 40,0 kg N
SR13-2K-38-G ZN 38,0 mm 18,0 mm - 45,0 kg N
SR13-2K-50-G 50,0 mm 18,0 mm - 45,0 kg N
SR02-2K-50-G

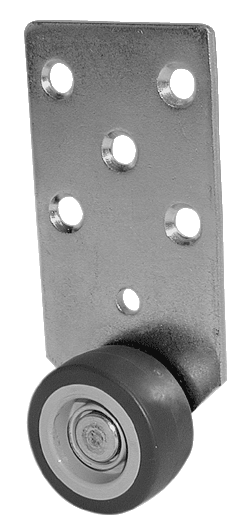

SR07-2K-38-G ZN
SR09-2K-30-G ZN
Eigenschaften
2-Komponenten - Rad
Irrtümer und Änderungen vorbehalten.
